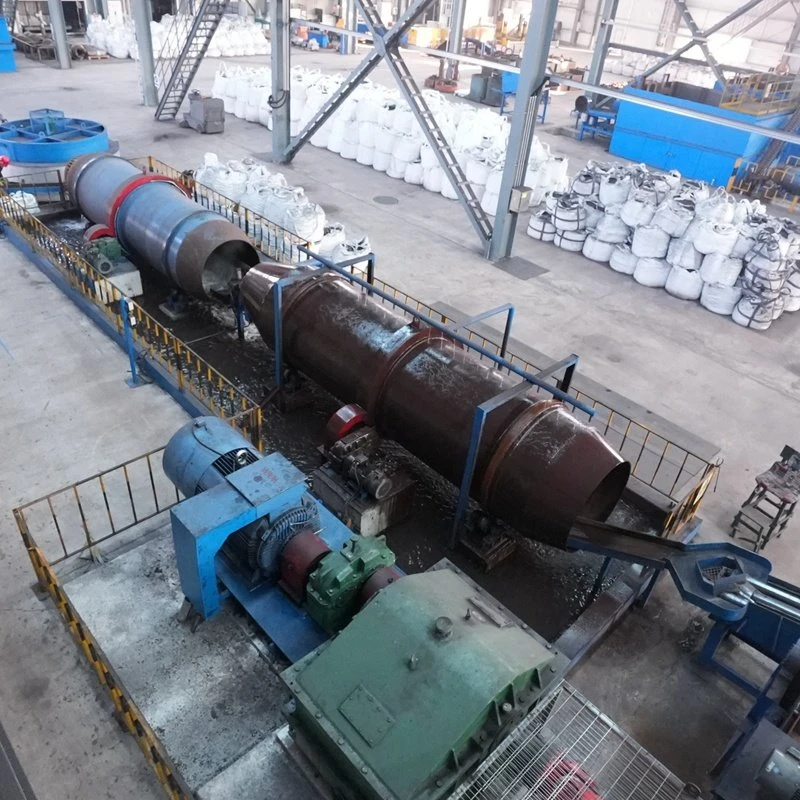

Steel Ball Skew Rolling Mill Line
Integrated Production Line: A fully automated, continuous production system covering everything from feeding, heating, and rolling to heat treatment.
Covers the full size range of φ20–φ125mm, with an hourly output of 0.5–25 tons.
Offers efficiency more than 10 times higher than forging, ensures consistent quality, and allows for customized configurations.
Product Introduction
The steel ball skew rolling mill line is a fully automated, continuous production system centered around a skew rolling mill. It integrates feeding, induction heating, rolling, quenching and tempering, and inspection. Capable of producing steel balls ranging from φ20mm to φ125mm, the system delivers efficiency over 10 times greater than traditional forging methods while ensuring consistent product quality. Configurations can be tailored to meet specific customer requirements regarding output and automation levels.
Product Advantages
Integrated Line with High Automation
Combines feeding, heating, rolling, quenching/tempering, and inspection into a single continuous process; minimizes manual intervention and ensures consistent batch quality.
Outstanding Production Efficiency
Each rotation of the rolling rolls produces multiple steel balls simultaneously; efficiency is over 10 times higher than traditional forging, making it ideal for high-volume, continuous production.
Excellent Product Quality
Steel balls feature precise dimensions and superior sphericity; the hardness difference between the core and surface is <5HRC; breakage rates are below 1%; and high impact toughness results in a longer service life compared to traditional forged or cast balls.
High Material Utilization
Skew rolling is a chipless plastic forming process that generates virtually no material waste; the material yield rate is significantly higher than that of forging or casting, reducing overall production costs.
Stable and Reliable Operation
Features automatic control of quenching entry temperature, automatic roll retraction, and precise feeding; effectively protects rolls during jams; allows for quick guide plate replacement, minimizing downtime.
Flexible Customization
Supports the production of steel balls across the full φ20–φ125mm range; configurations can be customized based on customer output targets, automation requirements, and on-site operating conditions.
Applications
Mining & Metallurgy: Ball milling processes such as metal ore beneficiation and pellet preparation.
Cement & Building Materials: Grinding of cement raw materials, clinker, and slag.
Thermal Power Generation: Coal pulverization and limestone grinding for flue gas desulfurization.
Chemical Industry: Grinding of chemical raw materials.
Other Grinding Fields: Processing of materials such as coal-water slurry, fly ash, calcium carbonate, and quartz sand.
Production Process
Material Preparation & Cutting: Round steel bars are cut to specific lengths according to process requirements, ensuring flat cross-sections and consistent dimensions.
Induction Heating: Billets are fed into an induction heating unit and heated uniformly to 850–1100°C (depending on material), ensuring thorough heating through the cross-section.
Skew Rolling: Heated billets enter the skew rolling mill; spiral roll passes shape them into balls in a single pass, with the connecting necks between balls breaking off naturally.
Quenching: After rolling, steel balls immediately enter a quenching unit for rapid cooling to achieve a high-hardness surface microstructure.
Tempering: Tempering treatment is performed to relieve quenching stresses, adjust core toughness, and balance hardness with impact resistance.
Inspection: Hardness tests, drop tests, and dimensional/visual inspections are conducted batch by batch; non-conforming products are rejected.
Packaging & Warehousing: Products passing inspection are packaged according to specifications and placed in storage.
FAQ
Q: What specifications of steel balls can the steel ball skew rolling mill line produce?
A: It covers the full range of steel balls from φ20mm to φ125mm; models ranging from ZQ20 to ZQ120 can be selected based on production targets. The line can also produce blanks for rotary components such as bearing rolling elements and automotive parts.
Q: What components are included in the steel ball skew rolling mill line?
A: The integrated line features intelligent feeding, medium-frequency induction heating, the main skew rolling unit, online quenching and tempering systems, and inspection systems, enabling fully automated, continuous production from round steel bars to finished steel balls.
Q: Do the products hold international certifications?
A: The company has obtained ISO 9001:2015, ISO 45001:2018, and ISO 14001:2015 certifications. These are globally recognized and meet the requirements for international project bidding and supplier audits.
