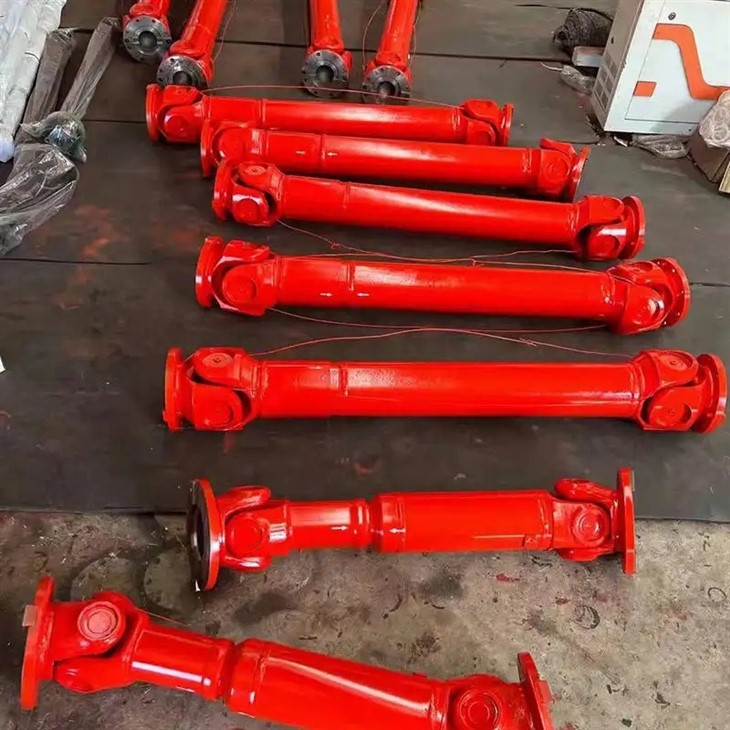

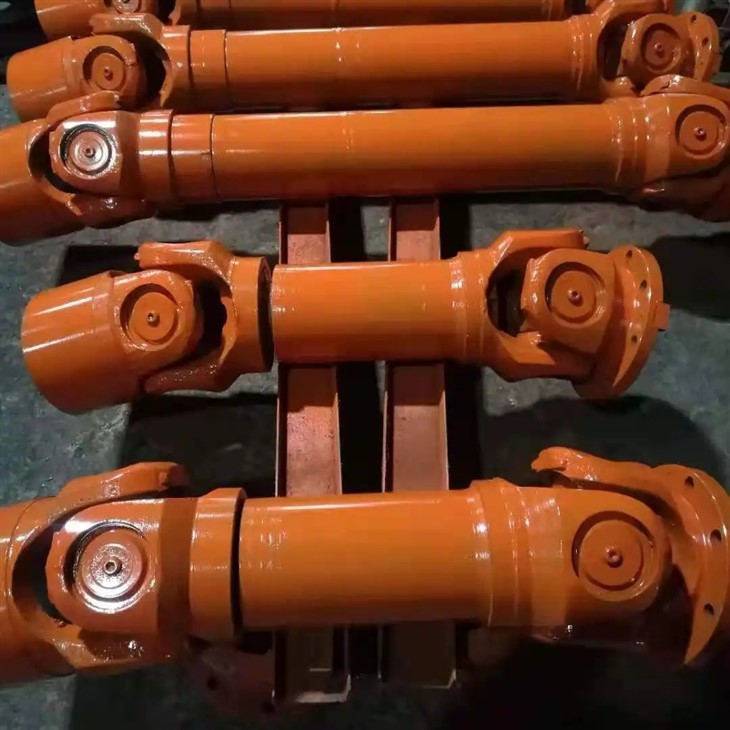

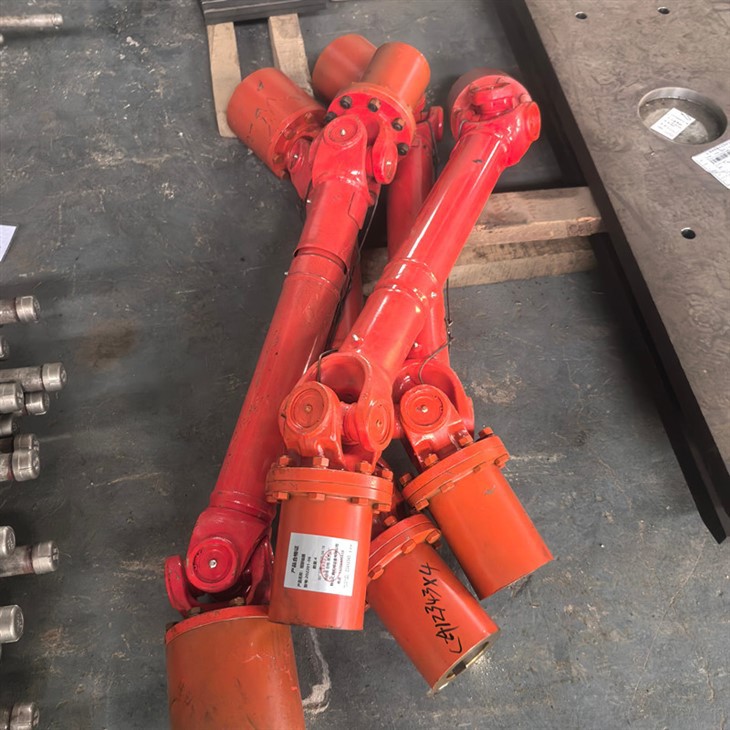

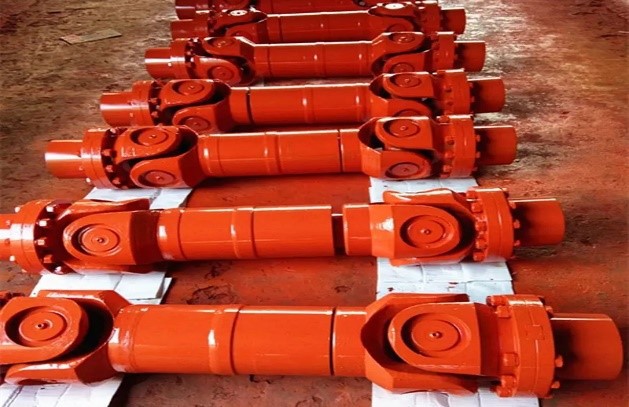

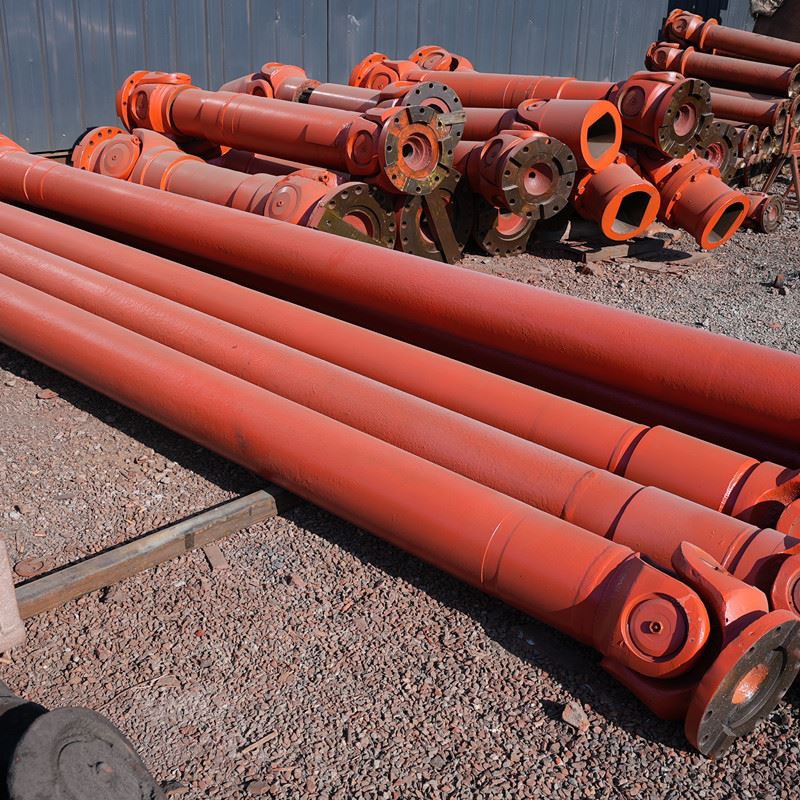

Cross Shaft Universal Coupling
Connects two shafts not in a straight line. Used in rolling mills, mining equipment, cranes. Transmits torque, compensates angle misalignment.
Product Introduction
The Cross Shaft Universal Coupling connects two shafts that are not aligned on the same axis, enabling power transmission at large angles (15°–25° for the SWC type) with an efficiency of 98%–99.9%. Its core components are manufactured from high-quality alloy steel and heat-treated for enhanced strength, ensuring high load-bearing capacity and smooth operation. Cross shaft universal couplings can be customized to specific requirements and are packaged in wooden crates to ensure safe delivery.
Product Parameters
|
SWC |
|
|
rotation diameter |
100-620mm |
|
torque |
1.25-1000 kN·m |
|
angle |
15-25°, bolt-free |
|
SWP |
|
|
rotation diameter |
160-640mm |
|
torque |
16-1250 kN·m |
|
angle |
5-10°, split bearing housing |
Product Advantages
High Transmission Efficiency
Efficiency reaches 98%–99.9%, effectively reducing energy consumption.
Strong Load-Bearing Capacity
Transmits higher torque for the same size; suitable for heavy-duty and high-power applications.
Wide Angular Compensation
Up to 15°–25° for SWC types and 10°–15° for SWP types, accommodating installation and operational displacement.
Reliable Operation
Integral yoke structure ensures smooth operation and easy assembly/disassembly, minimizing downtime for maintenance.
Applications
Metallurgy: Main drive equipment for rolling mills, continuous casting machines, etc.
Mining & Building Materials: Crushers, conveyors, ball mills, etc.
Hoisting & Transport Machinery: Cranes, construction vehicles, etc.
Petrochemical & Power: Drilling and extraction machinery, compressors, fans, pumps, etc.
General Heavy-Duty Machinery: Heavy equipment for shipbuilding, papermaking, rubber industries, etc.
Packaging & Logistics

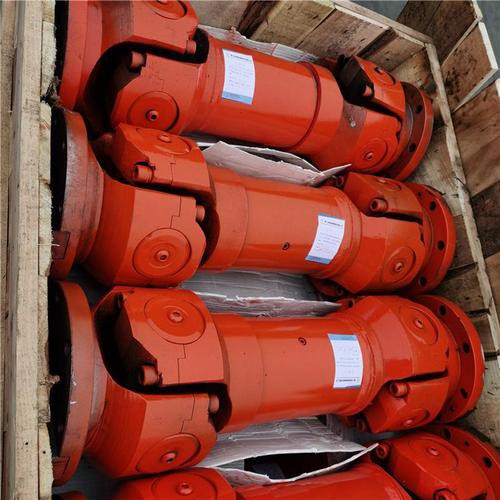

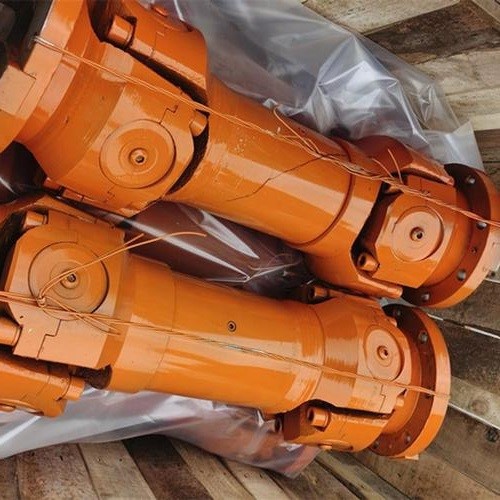

Packaging for Cross Shaft Universal Couplings: Moisture-proof stretch wrap + export-grade plywood crate (large units secured with brackets; small units marked and individually packed); includes a certificate of conformity, instruction manual, and packing list.
Lead Time & Logistics: Stock available for common specifications; lead time for standard custom orders is 25–35 days. Shipping via sea or air is supported.
